The Evolution of Fluid Control: From Hand Power to High-Tech Automation

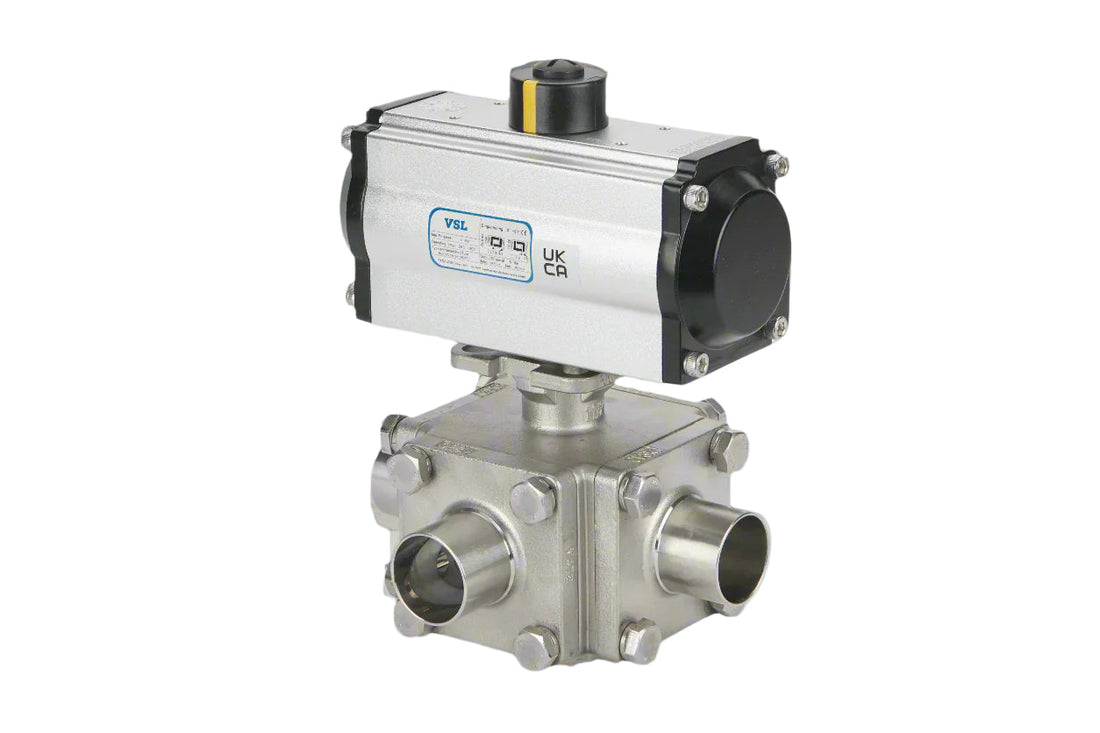

A valve actuator is the essential mechanism that translates a power source—whether manual force, air pressure, fluid pressure, or electricity—into the mechanical motion required to operate a valve and manage fluid flow. The history of valve automation is a compelling chronicle of human engineering, moving from basic hand-operated levers to sophisticated, digitally controlled systems that prioritize safety, precision, and efficiency in modern industry.

The Dawn of Mechanical Control
For many centuries, controlling fluid movement was a hands-on task. Operators manually engaged handles or handwheels to open, close, or partially restrict flow.
The Industrial Revolution introduced the first pressing need for automated control, particularly for managing high-pressure steam in early engines. Pioneers like James Watt improved valve designs that could be operated more efficiently. While early methods were often improvised (like using rope linkages for basic automation), these efforts highlighted an inherent desire to remove human labour from repetitive or hazardous operations, paving the way for true automated control.

The Power of Pressure: Hydraulics and Pneumatics
The 19th and early 20th centuries saw the emergence of external power sources tailored for valve manipulation.
  • Pneumatic Actuation: The widespread use of air compressors in the 1800s led to the development of compressed-air-driven pistons and cylinders. Early pneumatic actuators saw mass production during World War II for military and later commercial applications. By the 1960s, these systems became the backbone of process control, offering fast, reliable operation in the burgeoning oil, gas, and chemical industries.
  • Hydraulic Actuation: Utilizing pressurized fluids, hydraulic systems delivered high force output, making them indispensable for heavy-duty, critical applications like managing massive pipeline valves or safety systems in power plants. Electrohydraulic designs further refined their precision in the mid-20th century.

The Digital Shift and Smart Technology
As electronic components became more reliable, the focus shifted toward smarter, cleaner power sources.
  • Electric Actuation: While electric motors had existed for some time, a key innovation came in 1979 when Bent Jensen developed the first practical linear actuator motor. This breakthrough ushered in an era of compact, energy-efficient, and highly precise electric actuators that began to challenge the dominance of pneumatic systems.
  • Automation and Integration: The widespread adoption of computer control systems in the 1970s transformed the industry. Actuators could now communicate with central control systems via fieldbus protocols. Today's "smart actuators" utilize IoT technology, enabling predictive maintenance, remote diagnostics, and seamless integration into large-scale industrial automation networks.

Actuator Construction and Materials
The construction of actuators involves specific materials chosen for durability, environmental resilience, and operational requirements.

Pneumatic Actuator Materials
  • Body/Housing: Common choices include aluminium (lightweight, often hard-anodized or coated with Rilsan for corrosion protection), cast iron or steel (for heavy industrial use), or polyamide plastic for highly corrosive or wash-down environments.
  • Internal Components: Steel alloys are standard for robust gears, shafts, pistons, and reliable springs.
  • Seals: Various elastomers like NBR, FKM (Viton), or EPDM are used for sealing compressed air pressure effectively.

Electric Actuator Materials
  • Body/Housing: Typically made from aluminium (powder-coated for protection), cast iron (for strength), or engineered plastics (for lighter duty applications).
  • Internal Components: Steel alloys are used for gears and shafts, while high-grade plastics may be used in lighter models. Motors rely on standard copper windings and magnetic materials.
  • Seals: Elastomeric seals ensure high Ingress Protection (IP) ratings, safeguarding electronics from dust and moisture.

Applications and Critical Safety Features
Actuators provide versatility in system control and can be equipped with vital safety modules.

Common Actuator Applications
  • Simple On/Off Control: The basic function of fully opening or closing a line.
  • Modulating Control: Precisely positioning the valve at an intermediate point to regulate flow rates, essential for maintaining exact process conditions.
  • Remote Management: Operating valves located in inaccessible or hazardous areas from a safe control room.

Safety Add-Ons and Enhancements
  • Fail-Safe Mechanisms: A critical safety function that automatically drives a valve to a safe position (open or closed) during a power or pressure failure.
    • Pneumatic/Hydraulic Fail-Safe: Achieved using pre-tensioned springs within the actuator body (spring-return designs).
    • Electric Fail-Safe: Achieved using Battery Back-Up (BSR - Battery Safety Return) systems, which use internal batteries to complete the final safety movement during a power outage.
  • Manual Overrides: Essential for commissioning or emergencies, these allow human intervention using a handwheel or wrench.
  • Control Valve Positioners: Used in modulating control applications, these advanced devices ensure the actuator precisely matches the exact required setpoint from the control system, overcoming internal valve forces.
  • Monitoring: Limit switches provide remote confirmation of valve position, while visual indicators offer immediate local confirmation.
  • Solenoid Valves: Remotely controlled electrical switches that manage the flow of air to pneumatic actuators for rapid operation.

Leading Manufacturers in Valve Automation
The global market features specialized companies known for their contributions to actuation technology:
  • Emerson Automation Solutions (Bettis): A global leader offering reliable actuator solutions for energy and heavy industrial use.
  • Flowserve Corporation: Known for comprehensive solutions, including the renowned Norbro Actuator, a design originally patented by the Norris Brothers engineering firm.
  • Rotork: A specialist manufacturer of innovative electric, pneumatic, and hydraulic actuators for critical global applications.
  • Auma: A prominent German manufacturer specializing in modular electric actuators for general industrial and water management use.
  • Bray International: Offers strong lines of actuators and valves, known for industrial solutions.
  • J+J Automation: A Spanish manufacturer of high-quality electric actuators; VSL (Valve Supply Ltd) is their primary UK stockist.
  • Prisma Actuators: A respected Spanish manufacturer of high-end pneumatic actuators known for robust, Rilsan-coated aluminum designs.
  • Valbia: An Italian company manufacturing a complete range of electric and pneumatic actuators.
  • Haitima: A major Asian manufacturer offering a reliable range of pneumatic actuators.
  • CRP: A UK company specializing in PFA/PTFE-lined products, including actuators for highly corrosive environments.
The evolution of valve actuation reflects a journey from strenuous manual labour to highly sophisticated, autonomous control systems, showcasing humanity's drive to manage the flow of energy and materials that underpin the modern world.
