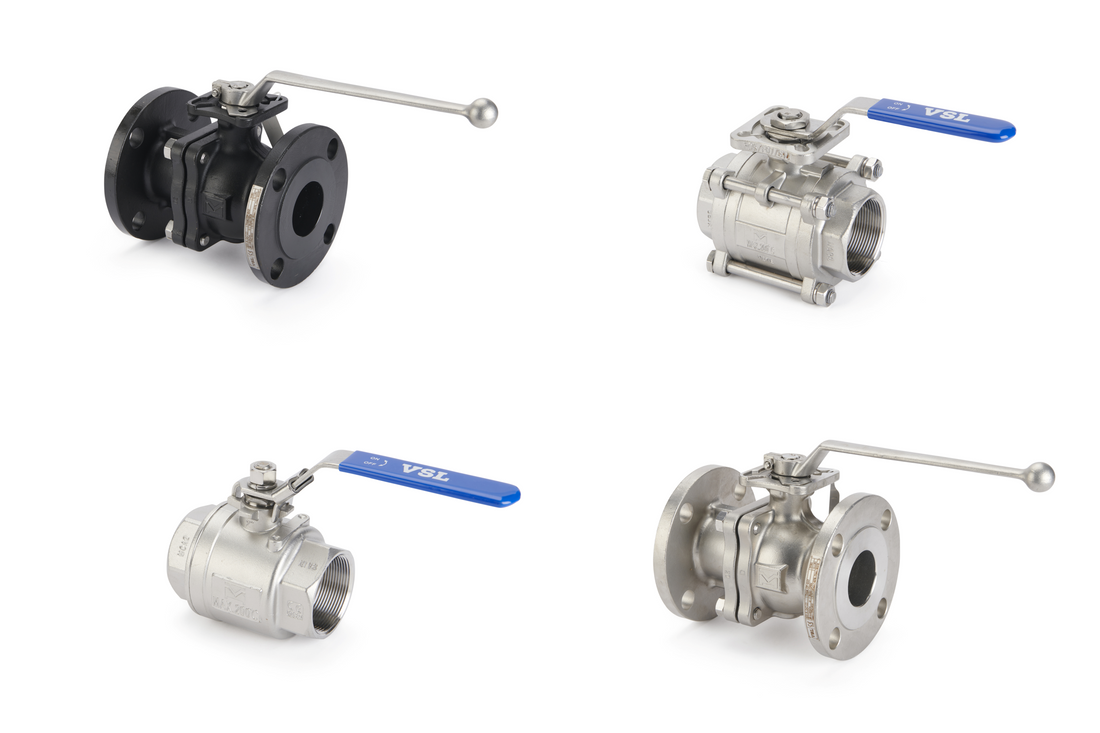

The Humble Ball Valve: From Roman Concept to Industrial Workhorse

A ball valve is a simple yet vital piece of engineering: a quarter-turn shut-off valve that manages the flow of liquids and gases using a hollow, perforated sphere mounted on a stem. They are celebrated for their straightforward operation, reliable performance, and durable sealing capabilities, making them an ubiquitous component in everything from residential plumbing systems to massive oil and gas pipelines.

What They Are and What They Are Used For
The mechanism is elegantly simple: a handle or actuator rotates the internal ball by 90 degrees. When aligned with the pipe, the bore allows fluid to pass freely. When turned perpendicular, the solid surface of the ball creates a tight, leak-proof seal.
This robust design lends itself to a vast array of applications:
Residential and Commercial: Used extensively in plumbing for main water shut-offs due to their reliable operation, even after long periods of inactivity.
Industrial: They manage everything from basic water to corrosive chemicals and hazardous gases in manufacturing, chemical processing, and water treatment facilities.
Energy and Infrastructure: Found in oil and gas pipelines, hydraulic systems, and HVAC cooling loops to manage various media under high pressure and temperature conditions.

History and Design Development
The foundational idea of using a rotating internal component for flow control dates back to Roman times with the use of simple bronze plug valves. However, the true history of the modern ball valve is a story of materials science catching up with a simple design concept.
Early Inventions: The ball valve concept was officially documented in the United States patent office as early as 1871, attributed to John Warren and John C. Chapman. This early design used metal-on-metal seating, but precision manufacturing was expensive and creating a consistently perfect seal was difficult with the technology of the era. Consequently, the design saw limited practical use.

The Post-WWII Breakthrough: The ball valve’s destiny changed in the mid-20th century, thanks to two pivotal innovations:
Precision Machining: Wartime manufacturing advancements led to machinery capable of producing highly spherical balls and uniform valve bodies economically.
The PTFE Revolution: The most significant factor was the commercial availability of polytetrafluoroethylene (PTFE), known by the trade name Teflon, discovered by DuPont in 1943. PTFE's unique properties—chemical inertness, flexibility, and self-lubrication—provided the perfect material for the soft seats, creating a durable and tight seal that metal could not match.

Commercialization and Refinement: The critical design that enabled the mass commercial success of the modern ball valve was perfected by Howard Freeman, who worked for the Jamesbury Company in the United States. Freeman and his team were instrumental in designing and implementing the reliable use of flexible PTFE seats in the mid-1950s (receiving a key patent in 1966). This design was quickly adopted, notably by the U.S. Navy for their submarine fleets, replacing heavier and more complex gate valves.

Design Evolution Over the Years: Since then, the design has diversified considerably:
Body Styles: From compact one-piece designs for general use to multi-piece (two- and three-piece) configurations that allow for easy in-line servicing without removing the entire valve from the pipeline.
Port Design: Full port designs minimize pressure drop for maximum flow, while reduced port designs offer a more economical solution where flow efficiency is less critical.
Automation and Control: The development of pneumatic and electric actuators transformed manual ball valves into automated control elements. While standard ball valves are primarily on/off, the 21st century has seen widespread use of specialized V-port or characterized ball valves. These modified designs provide linear flow characteristics, allowing for precise, modulated flow control in industrial processes where traditional globe valves were once the only option.

Materials and Performance Ratings
The selection of a ball valve depends heavily on the media, pressure, and temperature requirements of the application, dictating the choice of construction materials.
Body Materials
Common body materials include:

Brass: A durable, corrosion-resistant alloy suitable for water, oil, and gas in moderate pressure and temperature applications (e.g., up to 55 bar/798 psi and -20°C to 160°C).

Stainless Steel (304, 316): Offers superior corrosion resistance, ideal for chemical processing, marine, and food industries. It handles high temperatures and pressures (e.g., up to 70 bar/1015 psi and -40°C to 220°C). High-pressure versions can reach 3000 psi or more.

Aluminium Bronze: Provides exceptional corrosion resistance, particularly in seawater and saline environments, and excellent mechanical properties. It is used extensively in marine, offshore oil and gas, and shipbuilding applications.

Cast Iron: A traditional, cost-effective material often used for larger ball valves in low-pressure, moderate-temperature water, and general service applications, such as for public utility systems.

Carbon/Cast Steel: Used primarily in high-pressure, high-temperature industrial environments like oil and gas, often requiring external corrosion protection.

Exotic Alloys: For extremely corrosive or high-temperature environments, specialized alloys like Hastelloy, Monel, Inconel, and Titanium are used. These materials are essential in highly demanding chemical processing or aerospace applications where standard stainless steel would corrode or fail.

Plastics (PVC, CPVC, Polypropylene, PVDF): Lightweight and highly resistant to chemical corrosion, used for low-pressure applications, typically below 16 bar and temperatures below 60°C (PVC), though CPVC can handle higher temperatures up to about 100°C.

Seat Materials
The seat material is crucial for the valve's sealing performance and temperature/pressure limits:
PTFE (Teflon): The most common soft seat material, offering excellent chemical resistance and a wide temperature range (-30°C to 180°C), providing bubble-tight shutoff.

Reinforced PTFE (RPTFE): PTFE mixed with glass or carbon fiber for enhanced durability, higher pressure resistance, and reduced cold flow.

FluoroFill™: A high-performance filled PTFE that offers improved wear resistance, higher load capabilities, and reduced deformation compared to virgin PTFE.

UHMWPE (Ultra-High Molecular Weight Polyethylene): This thermoplastic polymer offers incredible abrasion resistance and high impact strength. It is often used for seats in applications involving abrasive slurries or dry materials where PTFE might wear out too quickly. It is generally used in lower temperature ranges (typically below 80°C).

PEEK (Polyether ether ketone): A high-performance thermoplastic used for higher pressures and temperatures (up to 260°C/500°F), often in hot water or steam applications where standard PTFE might fail.

Metal (Stainless Steel, etc.): Used in metal-seated ball valves for severe service applications involving highly abrasive media, extreme temperatures (up to 500°C/932°F), or very high pressures, although they typically provide a slightly lower leakage class than soft seats.

Other elastomers: FKM (Viton) and EPDM are used for specific chemical compatibilities and temperature ranges.

Well-Known Ball Valve Manufacturers
The ball valve market features a mix of large global corporations providing comprehensive flow control solutions and specialized manufacturers known for specific material or application expertise.
Emerson Automation Solutions: A global leader in automation, Emerson (through brands like Fisher and Keystone) provides a wide array of ball valves, including sophisticated control valves for the energy and chemical industries.
Flowserve Corporation: With a history spanning over 200 years, Flowserve is a major provider of pumps, seals, and valves, offering durable and high-performance ball valves for demanding applications like oil and gas pipelines and power generation. One of the most famous products is the Worcester Ball Valve.
KITZ Corporation: One of Japan's largest manufacturers, KITZ is known for precision-engineered brass and stainless steel valves used in everything from household plumbing to industrial petrochemical plants.
Velan Inc.: A Canadian company, Velan is a leading manufacturer specializing in forged steel ball valves designed for high-pressure and high-temperature conditions in the oil, gas, and nuclear sectors.
Schlumberger (Cameron): A major player in the energy industry, Cameron (now part of Schlumberger) has a strong reputation for producing robust ball valves, including trunnion-mounted and fully welded designs, specifically for the demanding conditions of oil and gas production and transmission.
AVK Group: AVK focuses on valves for water supply, gas supply, and wastewater treatment, offering a wide range of ball valves for utility-focused applications.
Apollo Valves (Conbraco Industries): A well-known American manufacturer, Apollo is a leading supplier of brass and bronze ball valves for industrial, plumbing, and HVAC applications.
Hattersley: A historic British brand (part of the Crane Building Services & Utilities group), known for a wide range of valves, including ball, butterfly, and check valves for commercial and industrial HVAC and building services.
Crane Co.: A diversified industrial company with a strong legacy in valve manufacturing (through Crane ChemPharma & Energy and Crane Building Services & Utilities), providing highly engineered valves for complex, severe-duty applications globally.
Haitima: A major Asian manufacturer, Haitima Corporation specializes in producing high-quality stainless steel and carbon steel ball valves and pipe fittings, often serving the general industrial market globally.
IBP: Known for its range of plumbing and heating products, IBP is owned by the IDC Group and is a leading supplier of fitting and valves in Europe.
Brooksbank: A British manufacturer specializing in high-grade bronze, duplex, and super duplex stainless steel valves for the marine, oil and gas, and chemical industries.
Bray International: A leading global manufacturer of industrial valves and automation products, specializing in high-performance butterfly valves but also offering a strong line of ball valves and electric/pneumatic actuators.
Xomox: A brand under the Crane Co. umbrella (specifically Crane ChemPharma & Energy), Xomox specializes in fully lined and sleeved plug valves and high-performance ball valves, especially for the chemical and pharmaceutical industries.
CRP: A UK-based company specializing in supplying PFA/PTFE-lined piping and valving products, including lined ball valves, specifically for highly corrosive chemical applications.
The adaptability, reliability, and continuous refinement of materials and design have solidified the ball valve's position as one of the most versatile and indispensable components of modern fluid management systems.
