The Ultimate Guide to Solenoid Valves: Types, History, and Why Diaphragm Designs Dominate Fluid Automation

This comprehensive guide breaks down the core fundamentals of solenoid valves, explores their rich history, and dives deep into the high-performing world of diaphragm-type solenoid valves—the ultimate industry standard for high-volume, contamination-free fluid systems.

When an electrical current passes through the coil, it generates a magnetic field. This field produces a linear mechanical force that pulls or pushes the plunger, shifting its position to seal or clear the internal valve orifice. The moment the control system cuts power, a heavy mechanical spring pushes the plunger back to its default resting state. Because they switch states in milliseconds, solenoid valves allow computers and programmable logic controllers (PLCs) to manage delicate process loops with extreme precision.

 A Quick History: Who Invented the Solenoid Valve?

The scientific foundation for this technology dates back to the 1820s, when French physicist André-Marie Ampère coined the word "solenoid" (derived from the Greek solenoeides, meaning "pipe-shaped") to describe a helical wire coil designed to generate a magnetic field. However, integrating this principle into a functional fluid control device took nearly another century.

The Automatic Switch Company (ASCO) invented the first commercially viable solenoid valve in 1910. Originally established to manufacture electrical elevator and generator control units, ASCO engineered this electrically operated device to handle fluid infrastructure remotely, proving that manual labour could be safely removed from industrial lines.

The next major evolutionary leap took place in the 1950s. The technical team at Bürkert revolutionized the engineering landscape by introducing the first plastic-moulded body solenoid valves. This creation provided chemically resistant encapsulation, sealing live electrical elements away from external hazards like factory dust and moisture, paving the way for the robust, modular process setups utilized today.

The Primary Types of Solenoid Valves

Solenoid valves are generally classified into three structural categories based on their internal actuation mechanism:

1. Direct-Acting Valves

In a direct-acting valve, the moving plunger directly opens or closes the main valve orifice. Because it relies entirely on the magnetic force generated by the coil, this type requires no minimum fluid pressure to operate, functioning perfectly from 0 bar up to its maximum rated capacity. They are highly responsive and reliable but are generally restricted to smaller pipe sizes and lower flow rates, as controlling high-pressure, high-volume lines would require an impractically massive coil.

2. Indirect-Acting (Pilot-Operated) Valves

Indirect-acting valves utilize the pressure differential of the fluid medium itself to open and close. The solenoid coil controls a tiny pilot hole rather than the main orifice. When the pilot hole opens, fluid pressure shifts an internal diaphragm or piston, which subsequently unseats the main valve. This design allows small, energy-efficient coils to control incredibly high flow rates and high-pressure lines. The main constraint is that they require a minimum pressure differential (typically around 0.5 bar) between the inlet and outlet to function.

3. Semi-Direct Acting (Assisted Lift) Valves

Combining the mechanics of both direct and indirect configurations, semi-direct acting valves connect the plunger directly to the internal diaphragm. When the coil is energized, the plunger lifts the diaphragm directly in low-pressure scenarios, while also opening a pilot hole to leverage fluid pressure in higher-pressure systems. This hybrid functionality allows them to operate smoothly from 0 bar while still managing high flow rates.



Circuit Functions: Normally Open vs. Normally Closed

• Normally Closed (NC): The valve remains tightly shut when de-energized, preventing fluid flow until electricity is applied to pull the plunger away.
• Normally Open (NO): The valve remains open when de-energized, allowing continuous fluid flow until an electric current forces the plunger down to block the path.

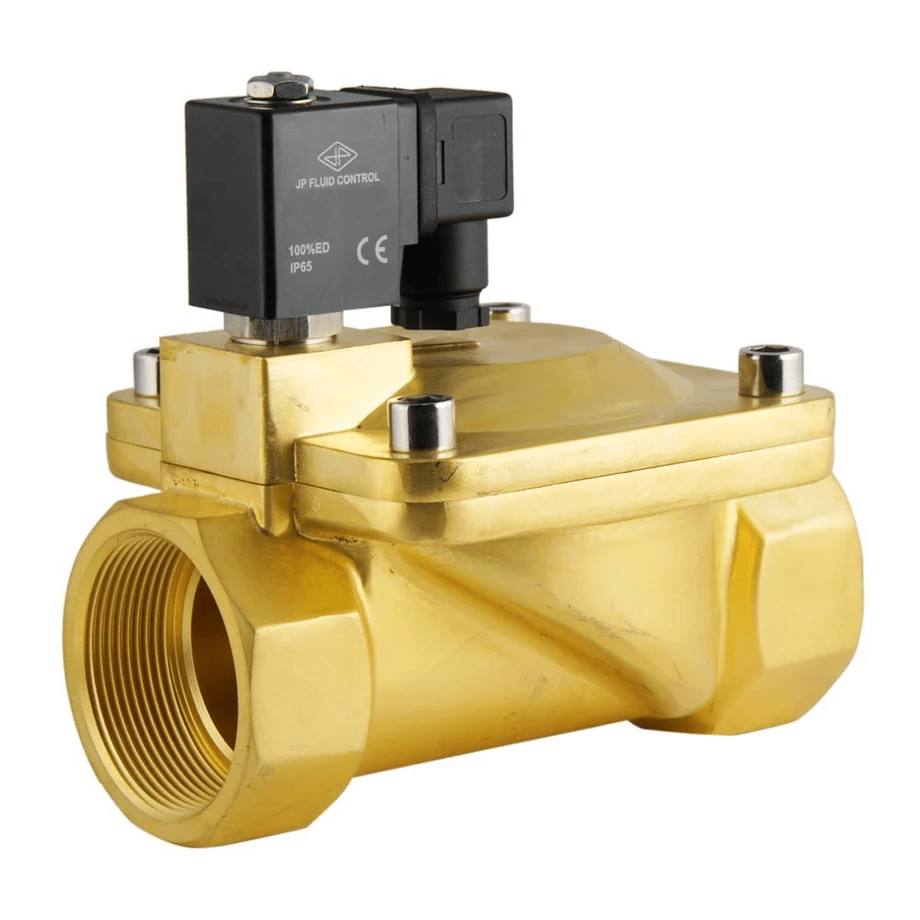

Deep Dive: Diaphragm-Type Solenoid Valves

While direct-acting valves work flawlessly for narrow fluid channels, industrial operations handling high volumes or demanding process media rely heavily on diaphragm solenoid valves.



How a Diaphragm Solenoid Valve Works

A diaphragm-type solenoid valve incorporates a flexible membrane (the diaphragm) that splits the valve body into a lower chamber (inlet/outlet) and an upper pressure chamber.

1. The Equalization Phase (Closed State): Fluid passes through a tiny bleed hole in the diaphragm, filling the upper chamber. Because the upper chamber exposes more surface area of the membrane to the fluid than the bottom, the downward hydraulic force seals the diaphragm tightly against the valve seat.
2. The Evacuation Phase (Open State): When the solenoid coil receives electrical power, the plunger rises and opens a tiny "pilot orifice". The fluid trapped in the upper chamber escapes down the pilot line much faster than new fluid can enter via the bleed hole.
3. The Lift Phase: This pressure imbalance causes the fluid pressure beneath the diaphragm to forcefully push the membrane upward, creating a wide-open path for large-volume flow.

       [De-Energised State]                          [Energised State]



         | | Plunger Down                              ▲ ▲ Plunger Raised

         v v                                           │ │

   ╔═══════════════════╗                         ╔═════╧═╧═══════════╗

   ║   Upper Chamber   ║                         ║  Pressure Escapes ║

   ║ ═════════════════ ║                         ║ ════  ▲   ▲  ════ ║

   ╚══════ Diaphragm ══╝                         ╚══════ Diaphragm ══╝

   ████████  |  ████████                         ████████  ▲  ████████

   Inlet ───►|  ───► Outlet                      Inlet ───►│───► Outlet

             (Closed)                                      (Open)



Unmatched Advantages of Diaphragm Configurations

• Massive Flow Capacities (Cv): Because the electric solenoid only needs to actuate a tiny pilot opening rather than lifting a heavy valve stem across a wide line, relatively small, low-wattage coils can smoothly manage massive, high-pressure pipes.
• Contamination & Wear Resistance: The flexible diaphragm acts as a physical boundary wall, sealing sensitive moving elements like the plunger and return spring completely away from abrasive, corrosive, or sticky process media.

Material Performance Face-off: PTFE vs. FKM for Solenoid Seals

Choosing the correct sealing compound is the line between long-term operational safety and catastrophic component failure. When dealing with extreme temperatures and harsh chemistries, engineers often debate between two premium fluorinated materials: PTFE (Polytetrafluoroethylene/Teflon) and FKM (Fluoroelastomer/Viton).

The core difference comes down to mechanical classification: FKM is a true elastomeric rubber, whereas PTFE is a rigid thermoplastic. FKM excels in applications where bubble-tight elastic sealing is mandatory because it compresses easily and returns to its original shape. It offers excellent all-around resistance to hydrocarbons, industrial fuels, and petroleum oils.

However, PTFE is the absolute industry gold standard for steam applications and aggressive chemical lines. Unlike FKM, which lacks structural resistance to steam and undergoes rapid failure via hydrolysis (where moisture breaks the polymer chain and causes seal swelling), PTFE Sealing is completely chemically inert. It handles punishing temperatures up to 200°C seamlessly. The main trade-off is that because PTFE is a harder plastic, it has less elasticity and requires higher seating forces to prevent slight seepage at near-zero pressures.

Solenoid Valves vs. Motorized Ball Valves for Steam Applications

When selecting automated steam line controls, engineers typically choose between a pilot-operated diaphragm solenoid valve and an electric motorized ball valve. Both have highly distinct performance profiles:

Feature / Metric	Diaphragm Solenoid Valve (PTFE Sealed)	Motorized Ball Valve (Electric Actuator)
Actuation Speed	Ultra-fast (milliseconds)	Gradual (Typically 5–15 seconds)
Water Hammer Risk	High risk due to instant closure	Very low; slow closure prevents shockwaves
Particulate Tolerance	Poor; easily jammed by scale/rust	Excellent; wipes away debris automatically
Power Consumption	Continuous draw while energized	Draws power only during rotation
Flow Capacity (Cv)	Restricted by internal pilot pathways	Full-bore path, zero flow restrictions

The Verdict: Use a PTFE-sealed solenoid valve if your steam loop requires rapid, repetitive cycles (e.g., sterilization autoclaves or quick-injection utility headers) where millisecond responses are mandatory. Opt for a motorized ball valve if your line handles high volumes of iron rust scale, or if sudden, instant valve closure threatens to trigger damaging water hammer waves inside your pipe networks.

Field Maintenance: Diaphragm Valve Troubleshooting Checklist

Because diaphragm valves feature moving parts, they are susceptible to environmental wear. Use this rapid field diagnostic checklist if your valve malfunctions:

🚨 Symptom: Valve Won't Turn On (Stuck Closed)

• Check Voltage: Use a digital multimeter across the coil terminals to ensure supply power is within ±10% of the stamped rating.
• Test Resistance: Disconnect coil leads and check the ohms (Ω). An infinite reading (OL) means the internal coil wire has broken (open circuit) and needs replacement.
• Audit Pressure: Ensure your line pressure meets the minimum differential requirement (typically >0.5 bar) if using an indirect configuration. If pressure is too low, the valve cannot lift the diaphragm.

🚨 Symptom: Valve Won't Turn Off (Stuck Open / Leaking Downstream)

• Inspect Flow Direction: Ensure the structural arrow cast into the metal valve body points accurately downstream. Installing a valve backward forces it open mechanically.
• Check for Debris: Disassemble the valve bonnet and inspect the diaphragm chamber. Sand particles, rust scale, or pipe tape trapped under the seal or blocking the tiny bleed holes will prevent the chamber from pressure-equalizing.
• Inspect the Plastic/Elastomer: Examine the diaphragm body for micro-tears, severe deformation, or pitting. A damaged diaphragm cannot hold the structural pressure balance required to seal the line.

Sourcing Your Fluid Solutions

When building a high-reliability fluid automation system, picking quality hardware is vital. Working with accredited UK stockists like Valve Supply Limited streamlines your workflow. Based out of Willenhall, West Midlands, they provide technical expertise and express delivery across complete industrial valve configurations.

Whether your build requires small direct-acting variations for air lines, or large automated packages fitted with high-durability PTFE seals, selecting components matched to your strict operating pressures ensures long-term safety and maximum equipment uptime.
