What is a Gate Valve? A Straightforward Guide

Gate valves are among the most widely used valves in plumbing and industrial systems. Known for their ability to provide tight shut-off and minimal pressure drop, they are ideal for applications where flow needs to be fully on or off. But what exactly is a gate valve, and how does it work?

How Does a Gate Valve Work?

A gate valve uses a flat or wedge-shaped gate (disc) that moves up or down to start or stop flow. When the valve is fully open, the gate is completely out of the flow path, allowing unobstructed passage of fluid. When closed, the gate sits firmly in the valve seat, providing a tight seal.

Because of their design, gate valves are not ideal for throttling. Partial opening can cause damage to the disc and seat due to vibration and flow erosion.

Key Benefits of Gate Valves

• Excellent Shut-Off: Provides a solid seal when fully closed.
• Minimal Pressure Drop: Allows full flow with virtually no resistance.
• Bidirectional Flow: Can be installed in either flow direction.
• Durable Construction: Long service life with proper maintenance.

Common Applications

Gate valves are widely used in systems where flow needs to be isolated, such as:

• Water supply and distribution
• Oil and gas pipelines
• Wastewater treatment
• Power generation plants
• Industrial fluid handling

Types of Gate Valves

Gate valves come in various styles and configurations:

• Rising Stem: Stem visibly rises as the valve opens; easy to see valve status.

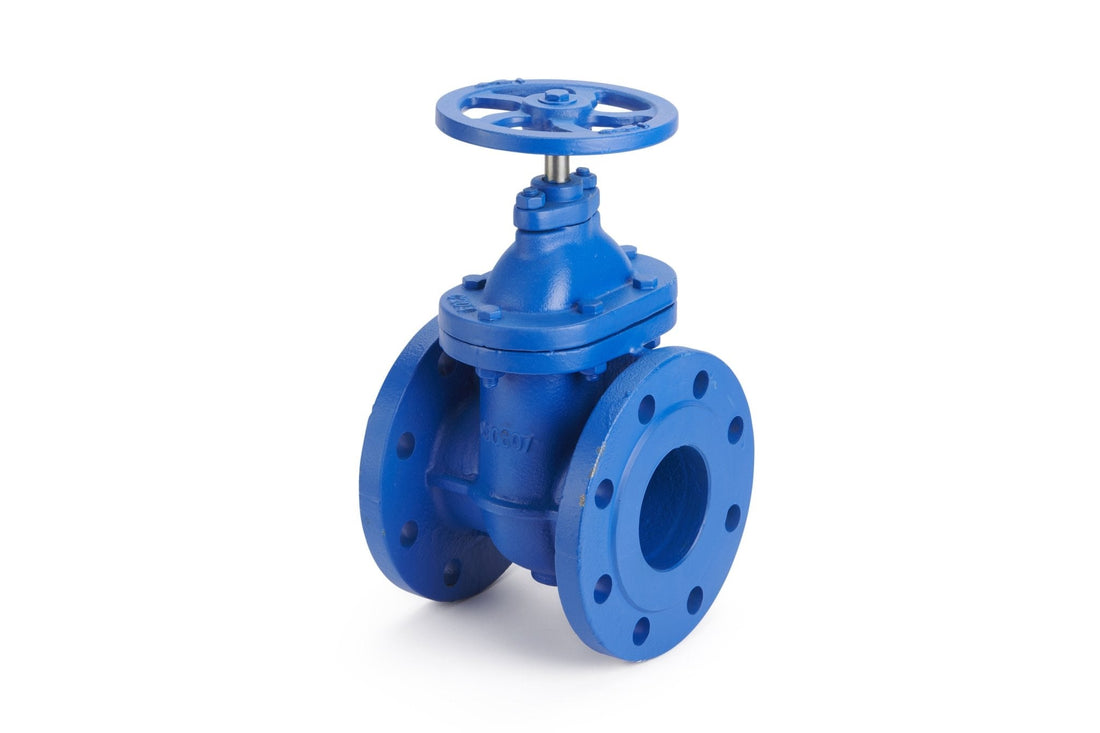

• Non-Rising Stem: Stem stays in place; ideal for tight spaces or underground use.
• Solid Wedge: Most common type; offers good durability and sealing.
• Flexible Wedge: Designed to accommodate thermal expansion or misalignment.

Materials Used in Gate Valves

Depending on the application, gate valves are available in several materials:

• Cast Iron & Ductile Iron: Cost-effective and corrosion-resistant for general use.
• Carbon Steel: High strength and temperature resistance.
• Stainless Steel: Excellent for corrosive or sanitary environments.
• Bronze & Brass: Often used in marine and plumbing applications.

Gate Valve vs. Ball Valve

While both provide isolation, gate valves are better suited for large-diameter piping and low-pressure-drop requirements. Ball valves, on the other hand, offer quicker operation and a more compact design, making them ideal for smaller or more frequently cycled systems.

Conclusion

Gate valves are a reliable and robust solution for on/off flow control in a wide range of systems. Their straightforward operation, durability, and effectiveness make them an essential component in many piping networks.
