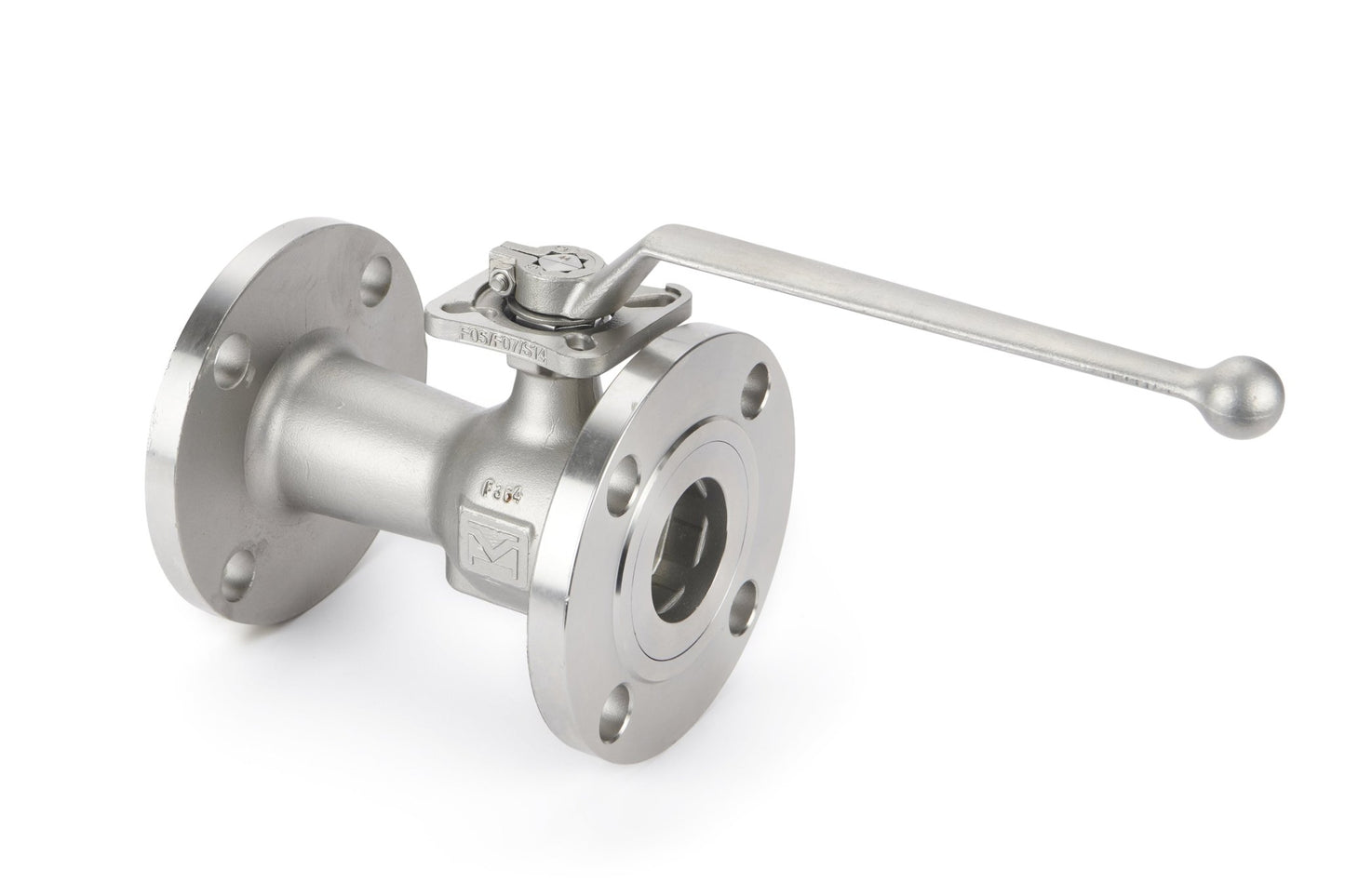

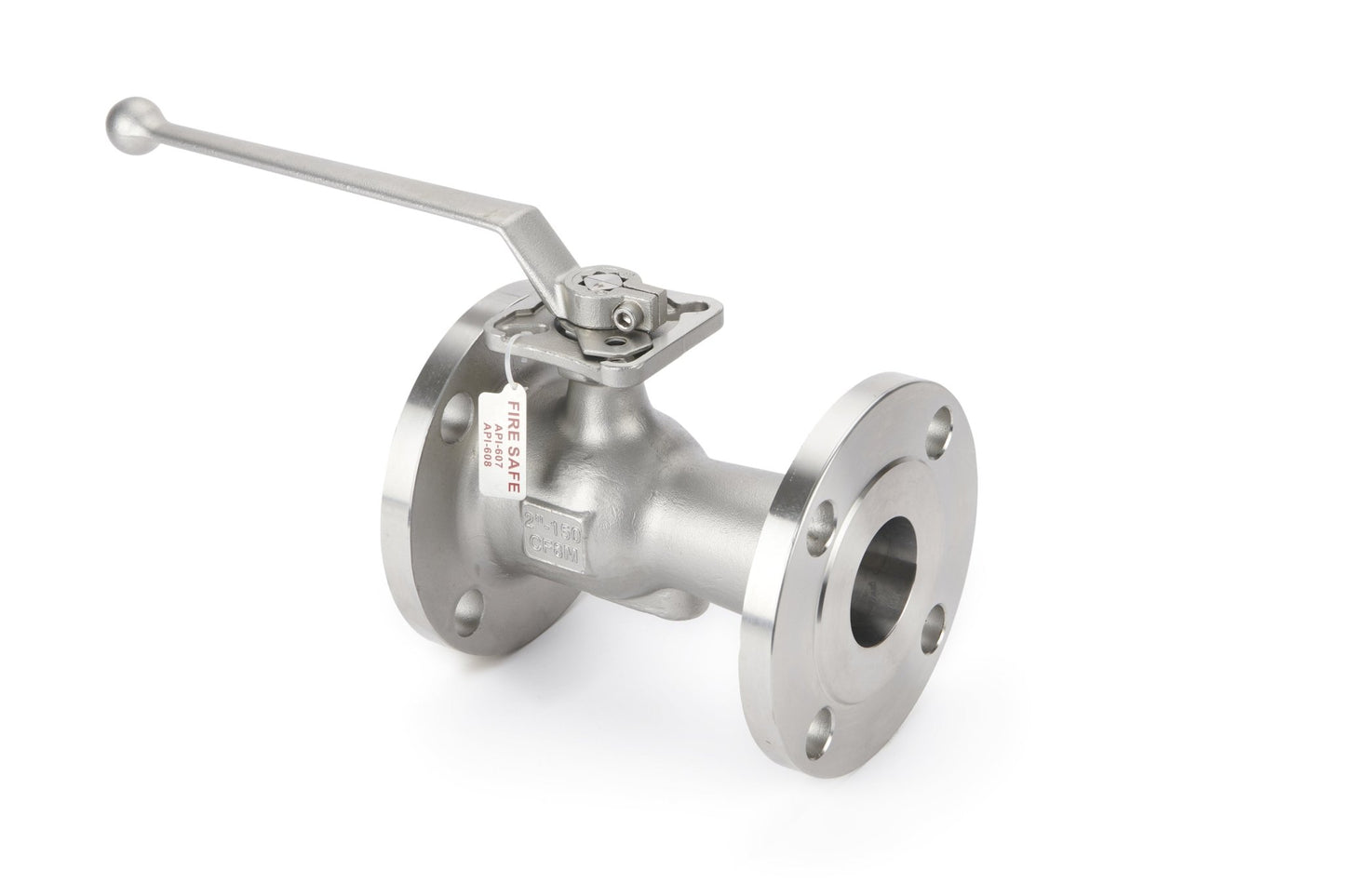

Ball Valve 1-Piece Stainless Steel Reduced Bore ISO Direct Mount Flanged ANSI 150 (CF-1RD)
Ball Valve 1-Piece Stainless Steel Reduced Bore ISO Direct Mount Flanged ANSI 150 (CF-1RD)
定價
£201.08 GBP
定價
£248.08 GBP
售價
£201.08 GBP
單價
/
每
已包含稅額。
結帳時計算運費。
Share
無法載入取貨服務供應情況
| Body Material | ASTM A351-CF8M |
| Ball Material | ASTM A351-CF8M |
| Seat Material | TFM1600 |
| Stem Material | ASTM A276-316 |
| Stem Packing | GRAPHITE / CTFE |
| Gland Nut | AISI 304 |
| Lever / Nut | AISI 304 |
| Flow | REDUCED BORE |
| Connection | F x F FLANGED ANSI 150 |
| Features | Direct Mount ISO 5211, Blow-out proof stem |
| Working Temperature | -20ºC to +230ºC |
| Maximum Working Pressure | 10 Bar | 150 PSI |
