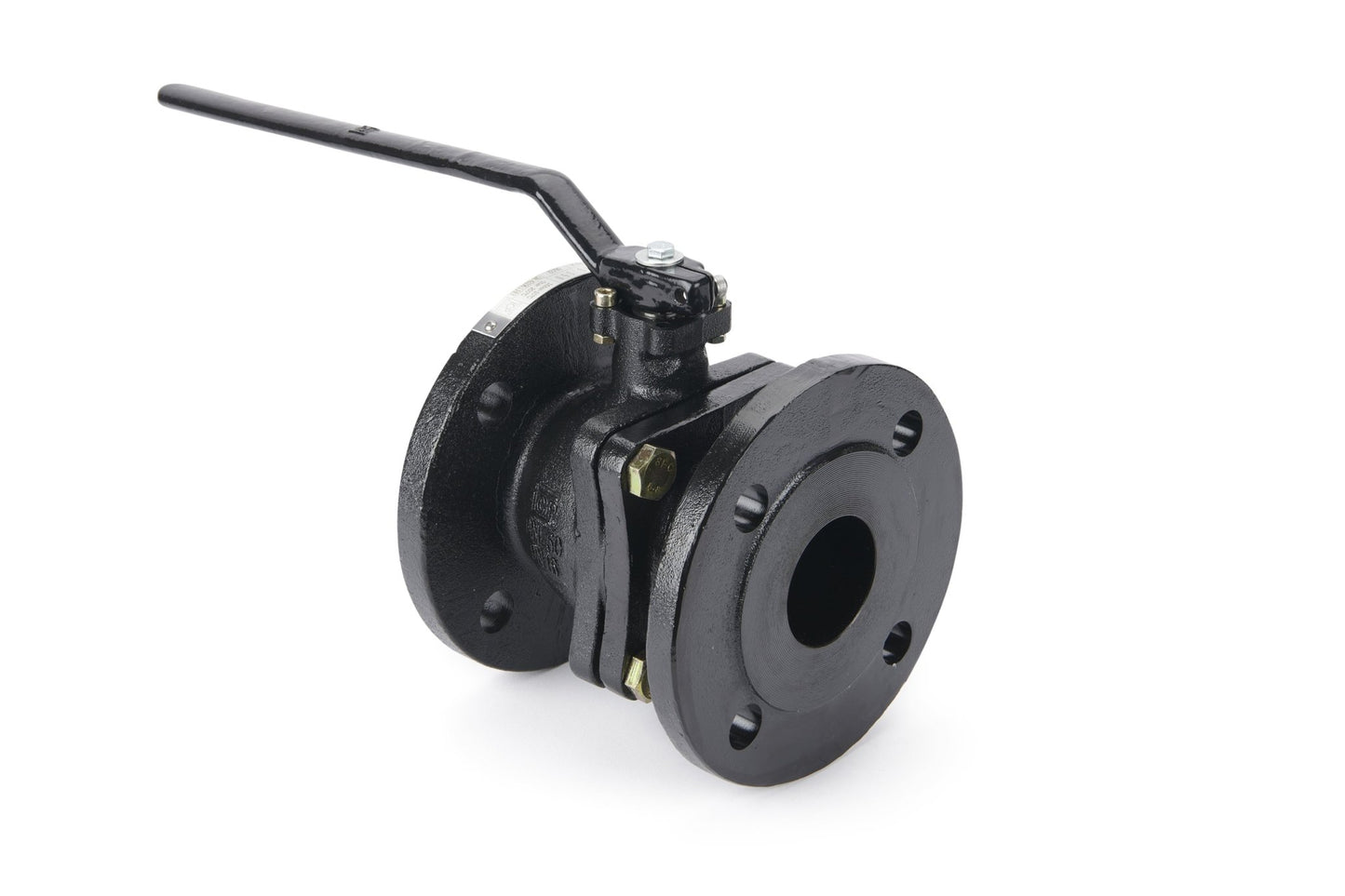

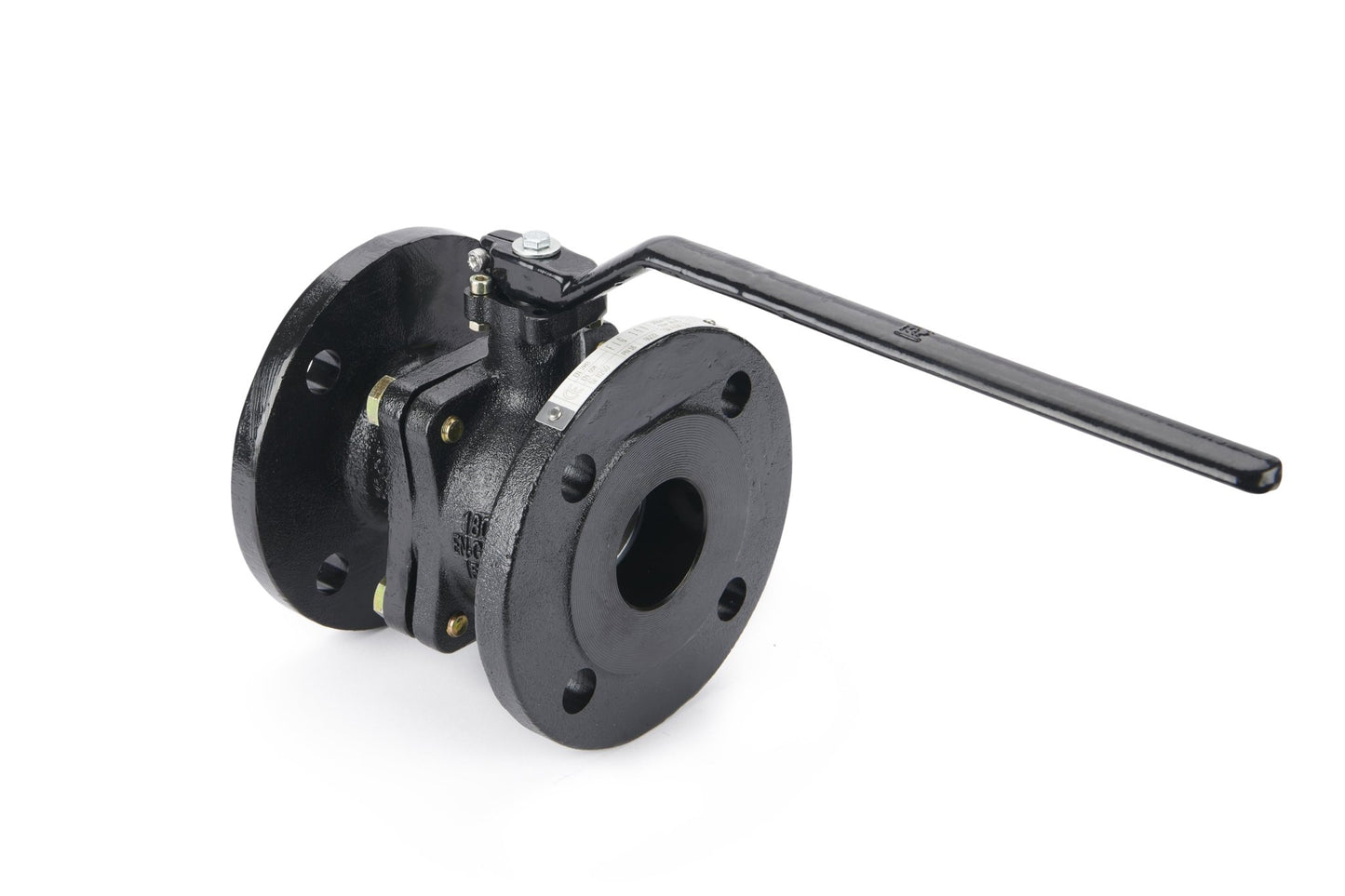

Ball Valve 2-Piece Cast Iron Full Bore Direct Mount ATEX Flanged PN16 (150HIT)
Ball Valve 2-Piece Cast Iron Full Bore Direct Mount ATEX Flanged PN16 (150HIT)
定價
£145.73 GBP
定價
售價
£145.73 GBP
單價
/
每
已包含稅額。
結帳時計算運費。
Share
無法載入取貨服務供應情況
| Body Material | EN-GFL-250 Cast Iron |
| Ball Material | AISI 303 (DN15-DN25) / AISI 304 (DN32 to DN200) |
| Seat Material | PTFE |
| Stem Material | AISI 304 |
| Stem Packing | PTFE |
| Gland Nut | DIN 934 8 |
| Lever / Nut | Carbon Steel |
| Flow | FULL BORE |
| Connection | F x F |
| Features | Direct Mount ISO 5211, Blow-out proof stem, Locking Lever (available on request) |
| Working Temperature | -20ºC to +240ºC |
| Maximum Working Pressure | 16 Bar | 230 PSI |
| Pressure & Temperature Ratings are dependent on application. | |
| Please check datasheet(s) or contact us for assistance |
