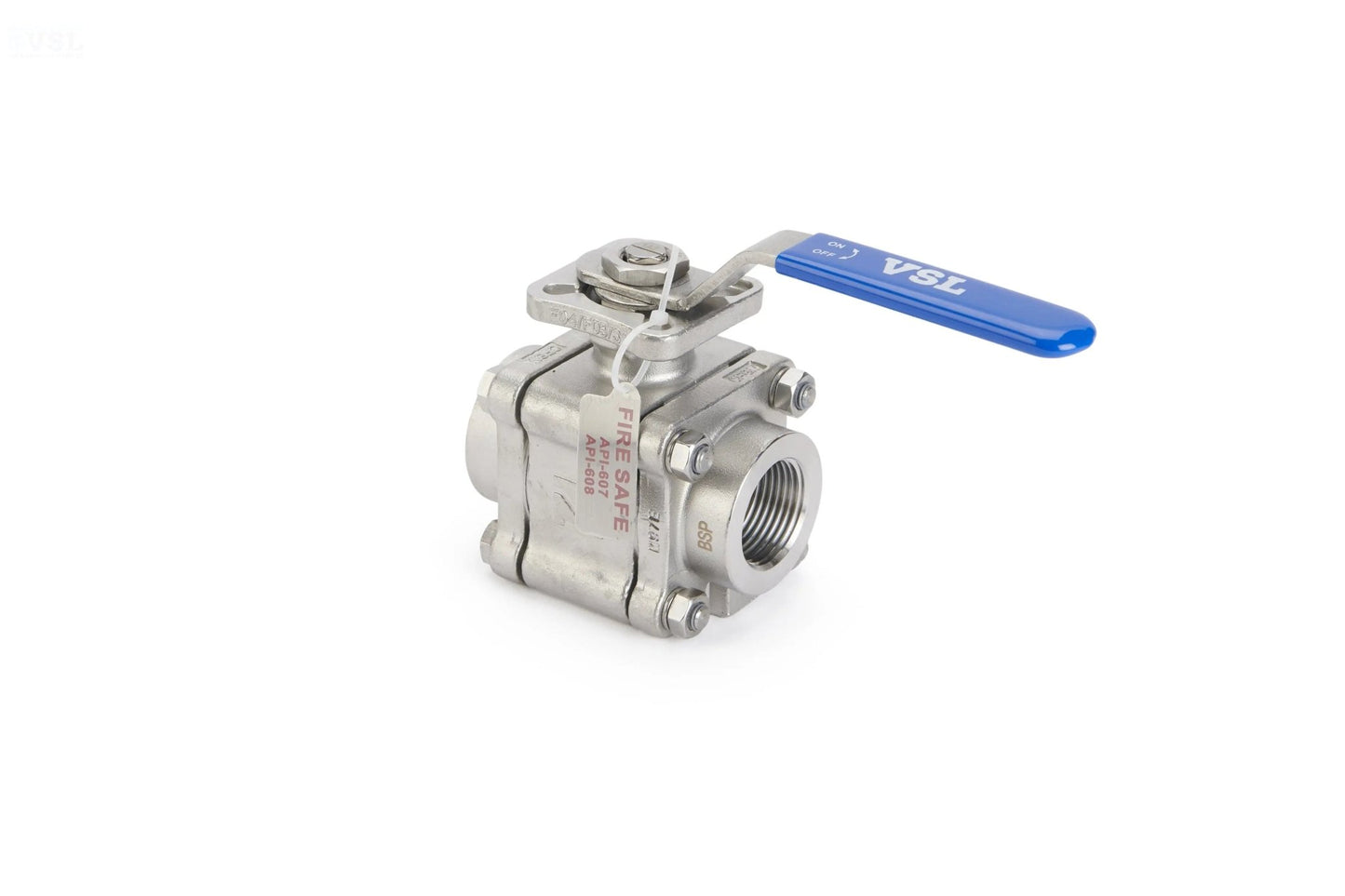

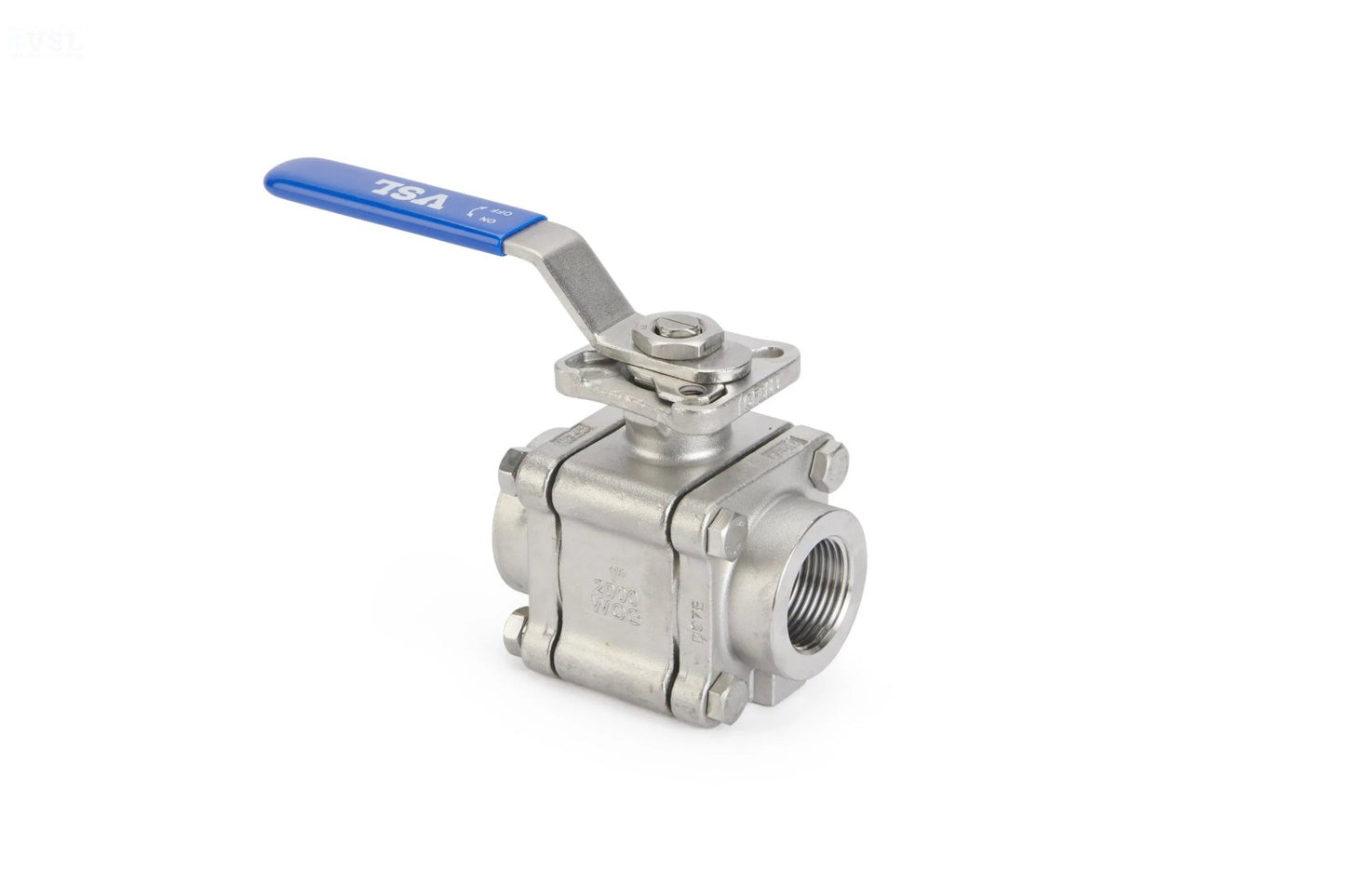

Ball Valve 3-Piece Stainless Steel Full Bore Direct Mount Firesafe API 607 ATEX (CT-3W)
Ball Valve 3-Piece Stainless Steel Full Bore Direct Mount Firesafe API 607 ATEX (CT-3W)
定價
£114.20 GBP
定價
售價
£114.20 GBP
單價
/
每
已包含稅額。
結帳時計算運費。
Share
無法載入取貨服務供應情況
| Body Material | CF8M SS |
| Seal Material | CF8M SS |
| Seat Material | CTFE |
| Stem Material | SS 316 |
| Stem Packing | Graphite |
| Gland Nut | SS 304 |
| Lever / Nut | ss 304 |
| Flow | Full Bore |
| Connection | F x F |
| Features | Blow-Out Proof Stem, Fire Safe API 607 ATEX, Anti-Static, Direct Mount ISO 5211, Locking Lever |
| Suitable for saturated steam up to 6 bar | |
| Working Temperature | -20ºC to +230ºC |
| Maximum Working Pressure | 68 Bar / 1000 PSI |
